- Multi biomass fuel for choice, energy saving and environment friendly
- Auto feeding/ ash removal/ cyclone for optional
- Indirect hot air heating, less pollution
- Automatic temperature controlling, temperature difference

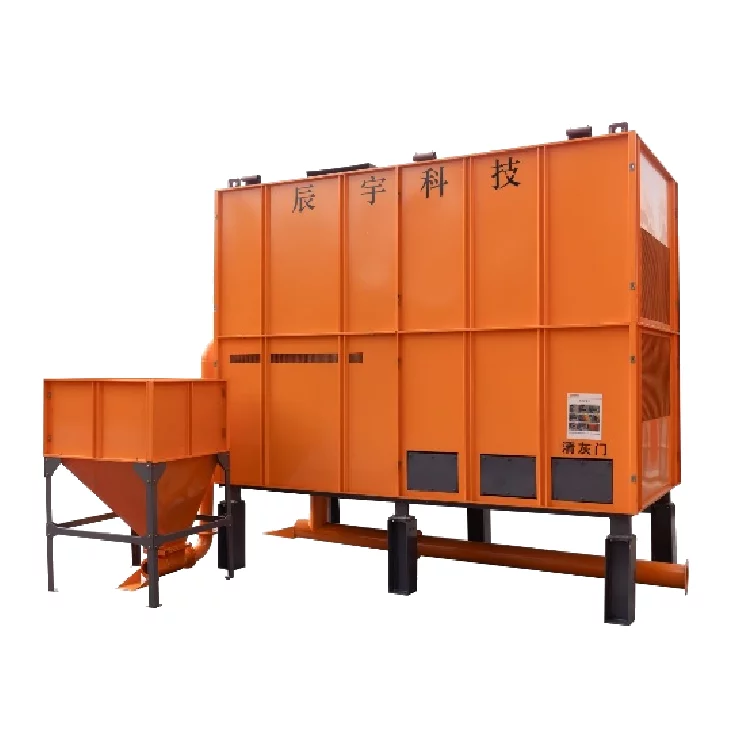

Classic Paddy Husk Furnace Burner with Auto Feeding Device
- 5L-30
- 5L-40
- 5L-50
Features
Product Introduction
Parameter
Product Categories
How Can We Help You
Feel free to contact us. We are available 24/7 via email or phone.
Much more automatic operation: heat up quickly and in good thermal effects, automatic temperature controlling which can prevent over-drying

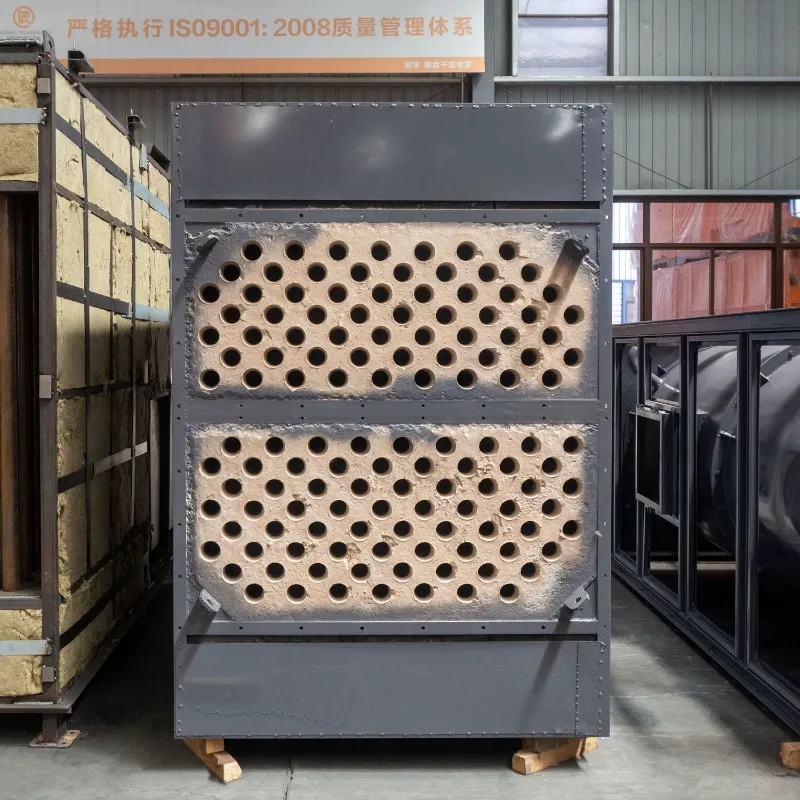

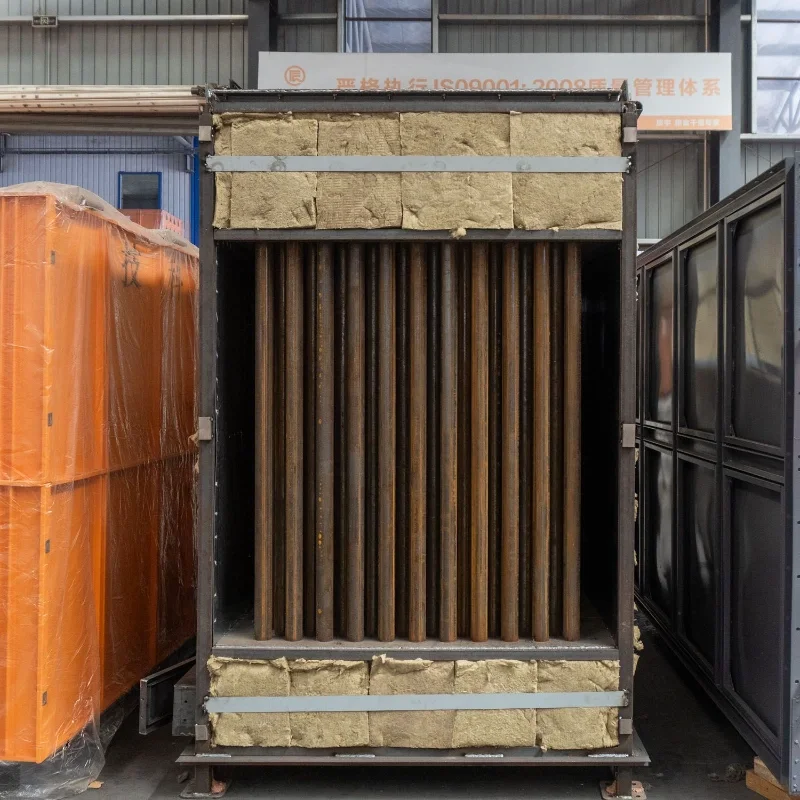

More safe indirect heating method cold air-heat exchanger-grain dryer(hot air)
Adopt rice hull, firewood, straw, anthracite and other biomass energy as fuel which can reduce the drying cost, save energy.
|
Model |
5L-30 husk burner |
5L-40 husk burner |
5L-50 husk burner |
|
Dimension (L*W*H)mm |
3860*1400*3135 |
4055*1600*3135 |
4055*1600*3495 |
|
Fuel |
Husk , Straw , Firewood , Anthracite |
||
|
Feeding type |
Manual/Auto feeding |
||
|
Ignition way |
Manual ignition |
||
|
Thermal efficiency(％） |
≥80 |
||
|
Hot air temperature(℃） |
60-120 |
||
|
Heating mode |
Indirect heating |
||
|
Rated calorific value |
30 |
40 |
50 |
|
Total power |
2.2kw |
||
|
Safety device |
Thermal relay, temperature sensors, leakage protector, overheating protection device and so on. |
||
Related Products

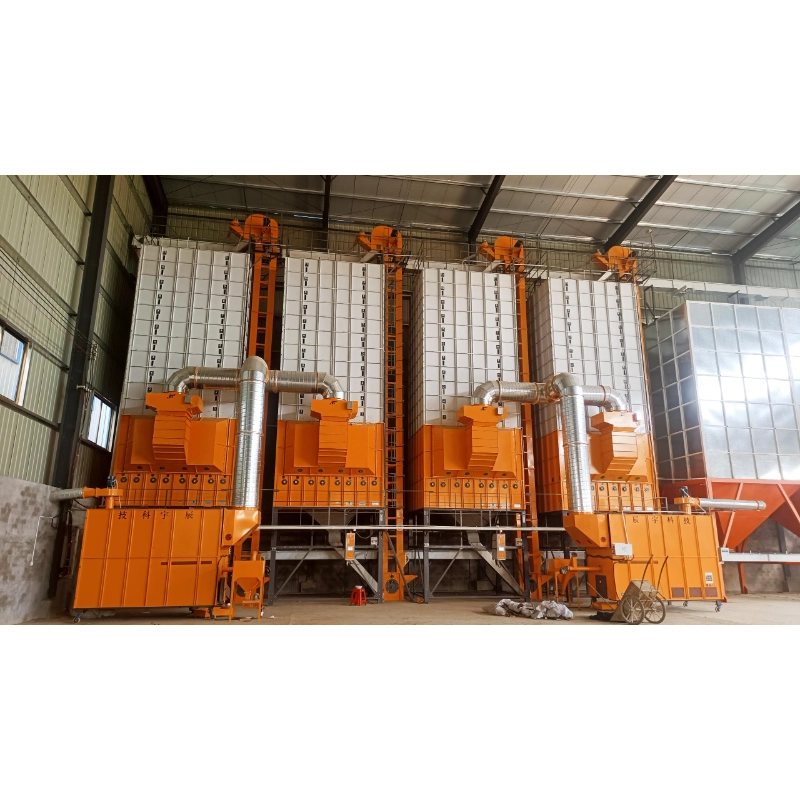

5H series grain dryer and 5L series hot blast stove are core patented products
