professional Maize Paddy Dryer Machine for Sale

5HWJL-30

Features

Adopt the mixed-flow drying technology for more uniform drying and higher
Adoptthe new grain discharging structure with an ultra-large air volume mixed-flow drying layer, leading in drying efficiency compared to similar products.
The grain discharging plate designed with dust removing function ,the dust will beblowed up and suck out by the dust blower,and the grain will be more clean.
A specially designed 'sampling hopper' allows users to take the grain sample thedrying process but with safety.
top or bottom feeding inlets design can satisfy with different site requirements of

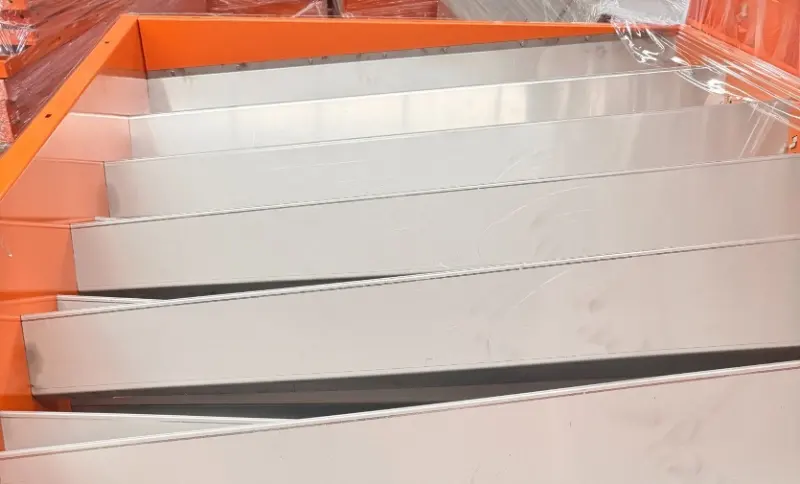

The dryer layer plate use alloy materials steel , ensure a longer machine life time.
A human-oriented maintenance platform' ensures the safety of routine maintenanceand inspections during daily "

Inquire Now

Product Introduction
Parameter

Product Categories

How Can We Help You

Feel free to contact us. We are available 24/7 via email or phone.

The use of the first domestic corner box structure, can meet the drying needs of different types of grains. High strength without deformation, reasonable grain discharge in the drying layer, stable flow rate, and high drying rate; with mix grain-discharging wheels, running fast.

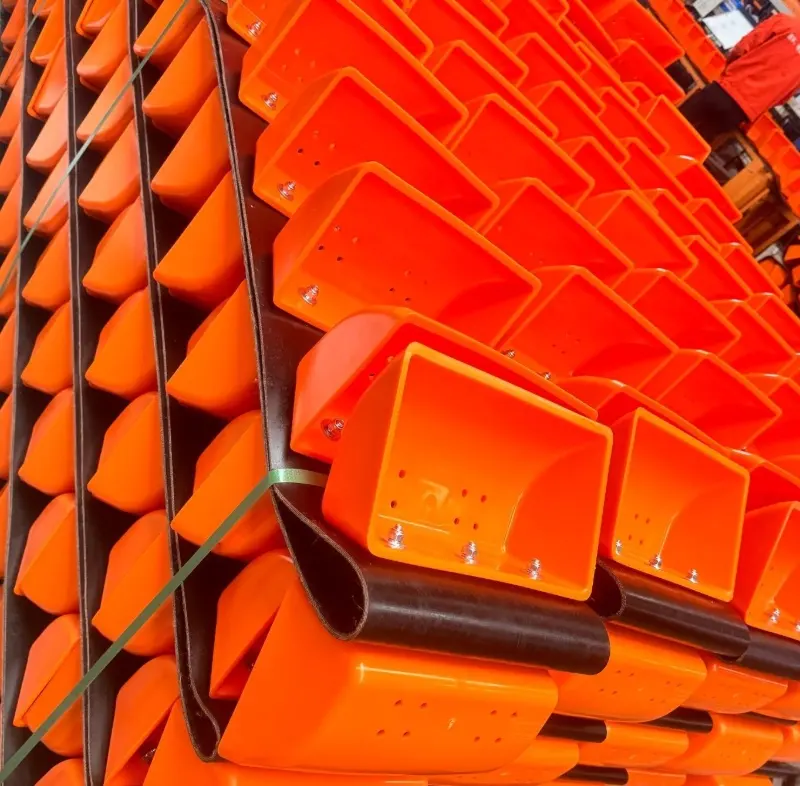

The dustbin made of thick PP material is designed to be more wear-resistant, and the conveyor belt is also thickened to improve its stability, durability, and reduce customer costs in the later stage

The design without a screw reduces grain breakage, lowers the risk of malfunctions, and also reduces the difficulty of cleaning

Model		30ton mixed flow 5HWJL-30
Structure type		Batch type circulating
Drying way		Indirect heating
Drying type		Mixed flow
Dimension(LWH)mm		4815446013760
Batch volume(t/d)		30
Moisture(%/h)		0.5-1.2
Height of drying layer(mm)		2400
Height of the tempering layer(mm)		5830
Effective volume(m³)		59.8
Hot air temperature range(℃）		40-90
Number of fan		2
Total power (kw)		15.85
Productivity(t/h)		≥30.5
Device	Safety device	Full grain alarm device, thermal relay, temperature controller, grain temperature sensor, hot air temperature sensor, overload protection, leakage protection device.
	Standard device	Online moisture meter, online temperature detector, dryer base, dryer discharging layer, drying layer, tempering layer, elevator, hot air blower, guard railing, ladders, etc.
