- Low cost,use the husk,wood chips as the fuel
- High auomaticly funtion ,auto feedin gand auto ash removing fixture
- Adopts suspended combustion technology, better environmental protection and thorough combustion with effeciency

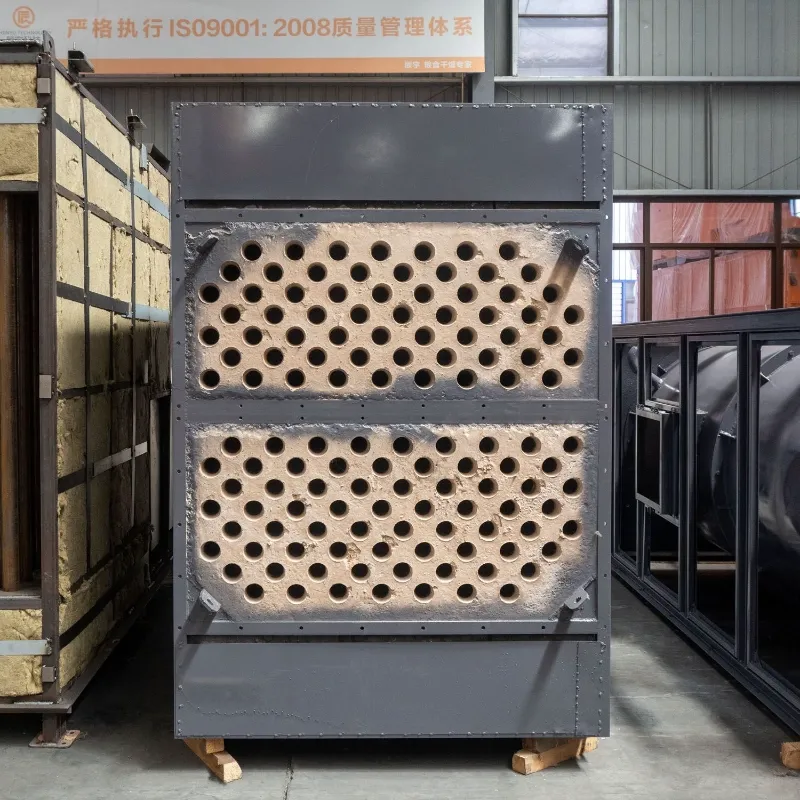

- The furnace chamber fill with fully refractory materials with new technology. greatly extending the service lifetime and easy maintainace.
- Achieves rapid heating from ambient temperature to 110℃ in just 8-10 minutes in Southeast Asia and Central South China; in Northeast China, it takes only 10-20 minutes.
new type suspended husk burner for grain dryer
- 5L-70III Husk burner
Features
Product Introduction
Parameter
Product Categories
How Can We Help You
Feel free to contact us. We are available 24/7 via email or phone.

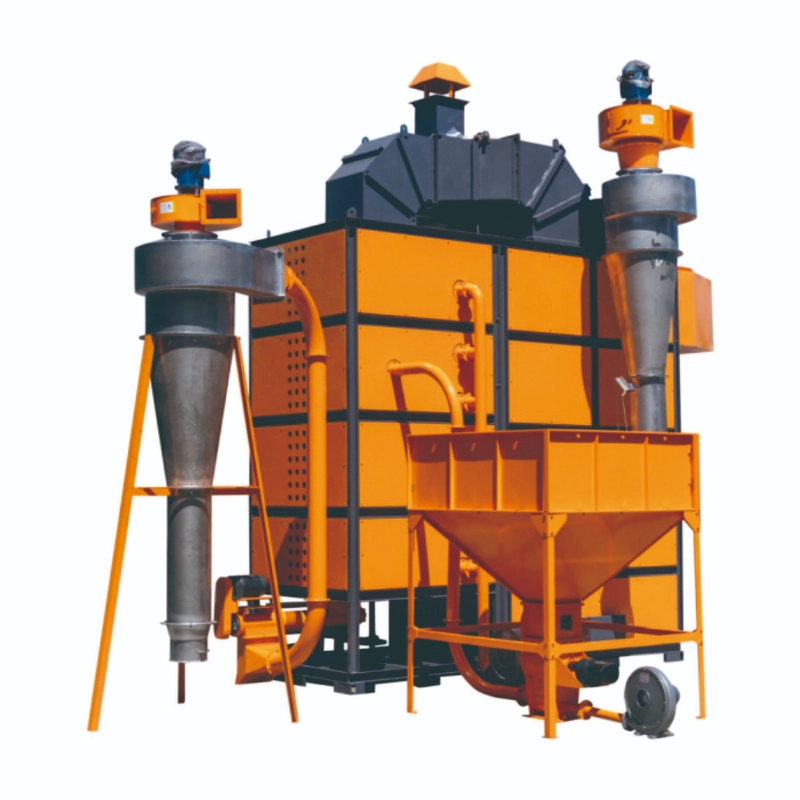

Suspended husk burner with Shakron dust removal device
The materials are sturdy and the internal structure is uniform, which can better transfer hot air heat and make the grain drying process taste better
Made of high-quality stainless steel with thickened plate usage to ensure quality, trust worthy
Using rice husk and straw as fuel, cost-effective
| model | 5L-70III Husk burner |
| strucutre | interal type |
| dimension(L*W*H)mm | 6296*4025*5096 |
| fuel | husk, biomass pellets |
| feeding way | manual/auto feeding |
| ignition way | manual ignition |
| out hot air temperature | 60-120℃ |
| total power | 8.5kw |
| safety device | thermal relay, temperature sensor, leakage protector, overheating protection device, etc. |
Related Products
5H series grain dryer and 5L series hot blast stove are core patented products
